SparkFun – Triple Axis Magnetometer Breakout – HMC5883L

SparkFun: SEN-10530

Description: This is a breakout board for Honeywell’s HMC5883L, a 3-axis digital compass. Communication with the HMC5883L is simple and all done through an I2C interface. There is no on-board regulator, so a regulated voltage of 2.16-3.6VDC should be supplied.

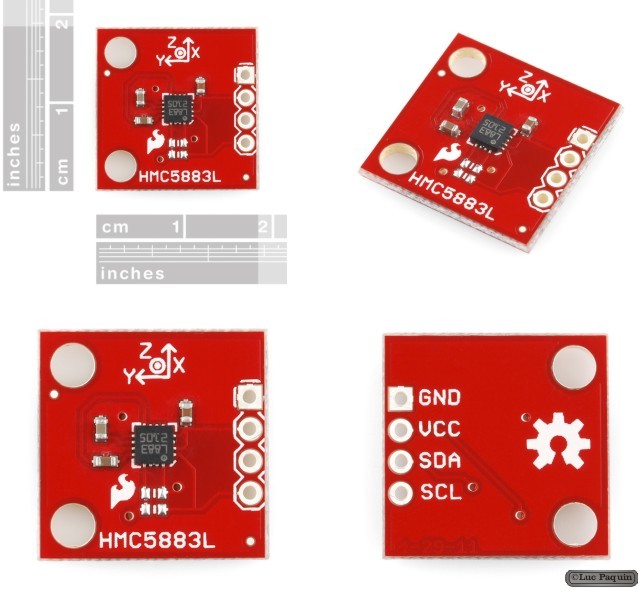

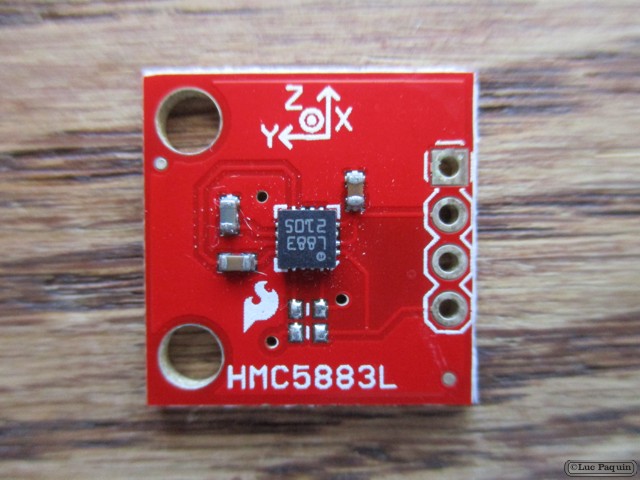

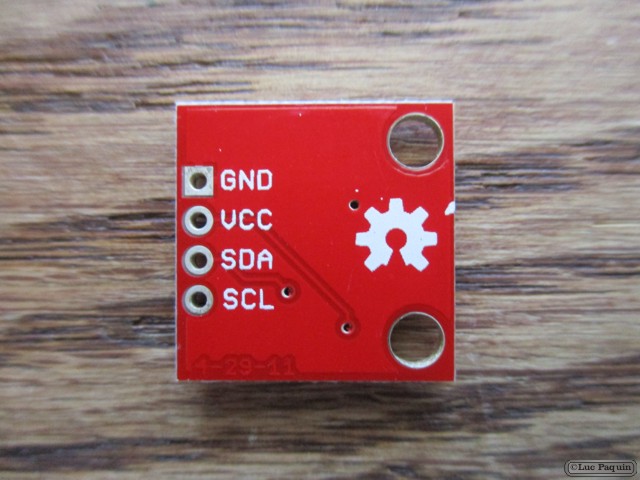

The breakout board includes the HMC5883L sensor and all filtering capacitors as shown. The power and 2-wire interface pins are all broken out to a 0.1″ pitch header.

Features:

• Simple I2C interface
• 2.16-3.6VDC supply range
• Low current draw
• 5 milli-gauss resolution

Dimensions: 0.7×0.7″ (17.78×17.78mm)
