Machine

Published May 19, 2015 | By DonLuc

A machine is a tool containing one or more parts that uses energy to perform an intended action. Machines are usually powered by mechanical, chemical, thermal, or electrical means, and are often motorized. Historically, a power tool also required moving parts to classify as a machine. However, the advent of electronics has led to the development of power tools without moving parts that are considered machines.

A simple machine is a device that simply transforms the direction or magnitude of a force, but a large number of more complex machines exist. Examples include vehicles, electronic systems, molecular machines, computers, television, and radio.

Electronic Devices

Vacuum tube, Transistor, Diode, Resistor, Capacitor, Inductor, Memristor, Semiconductor, Computer.

Robots

Actuator, Servo, Servomechanism, Stepper motor, Computer.

Electronic Machine

Electronics is the branch of physics, engineering and technology dealing with electrical circuits that involve active electrical components such as vacuum tubes, transistors, diodes and integrated circuits, and associated passive interconnection technologies. The nonlinear behavior of active components and their ability to control electron flows makes amplification of weak signals possible and is usually applied to information and signal processing. Similarly, the ability of electronic devices to act as switches makes digital information processing possible. Interconnection technologies such as circuit boards, electronic packaging technology, and other varied forms of communication infrastructure complete circuit functionality and transform the mixed components into a working system.

Don Luc

Posted in Digital Electronics | Leave a comment

Ontrak ADU208 – Mk1

Published May 14, 2015 | By DonLuc

ADU208 USB Relay I/O Interface ( Dimensions, 5.1″ X 2.8 X 1.0″ )

The ADU208 USB Relay I/O Interface allows control of 8 relay contact outputs, 8 contact or TTL inputs, and 8 event counters via a USB port. The ADU208 can effectively convert a standard PC to a powerful PLC ( programmable logic controller ). High quality PA-Series relays from Aromat offer superior performance. This low-cost serial relay contact interface is easy to use with VB, VB.NET, and Visual C++ via standard HID drivers included with Windows 98,2000,XP. A mini-driver ( DLL )* is also provided allowing control using standard ASCII commands using familiar readfile , writefile commands. The ADU208 includes a 10′ USB cable and is available as a PCB or in an enclosure with several mounting options.

Key Benefits, ADU208 USB Relay I/O Interface

Provides a standard PC with PLC ( programmable logic controller ) functions.
Low-cost .
Bus Powered, No external power supply required.
8, N. O. relay contact outputs rated 5.0A @ 120VAC, 5.0A @ 30VDC
CSA/UL Approved, CE Marked
High quality Aromat PA-series relays offer superior performance.
8 Digital inputs suitable for contact or TTL Input , also accept up to 24VDC
Inputs feature optical isolation to 3500V ( 500V channel to channel )
Programmable watchdog functions.
Bi-colour LED status indicator.
Self-resetting, fused 5V output
High quality cage-clamp type terminal blocks.
Uses standard HID drivers included with Windows 98SE,2000,XP
Mini-driver ( DLL ) provided for use with VB,VC, LabVIEW and TestPoint
Programming examples and sample code included for VB, Visual C++
Eight, 16-bit event counters
Programmable debounce setting for event counters.
No power supply required.
Meets IEC61000-4-2 ESD protection for USB port.
Available in enclosure or as PCB only.

Don Luc

Posted in Digital Electronics, Ontrak | Leave a comment

Project #3 – LCD Shield – Mk5

Published April 12, 2015 | By DonLuc

LCDShieldMk5.1.ino

// ***** Don Luc *****
// Software Version Information
// 5.1

// include the library code:
#include <Wire.h>
#include <Adafruit_MCP23017.h>
#include <Adafruit_RGBLCDShield.h>
#include <SPI.h>
#include <RTClib.h>
#include <RTC_DS3231.h>
#include <OneWire.h>

RTC_DS3231 RTC;

#define SQW_FREQ DS3231_SQW_FREQ_1024     //0b00001000   1024Hz

Adafruit_RGBLCDShield RGBLCDShield = Adafruit_RGBLCDShield();

// These #defines make it easy to set the backlight color
#define OFF 0x0
#define RED 0x1
#define YELLOW 0x3
#define GREEN 0x2
#define TEAL 0x6
#define BLUE 0x4
#define VIOLET 0x5
#define WHITE 0x7

int yy = 0;
uint8_t momentaryButton = 0;

// Chorno
boolean isChorno = true;
boolean isChor = false;
char datastr[100];
int zz = 0;
// LDR (light dependent resistor)
int LDR_Pin = A0;
int LDRReading = 0;
String LDR = "";
// Temperature chip i/o
int DS18S20_Pin = 2; //DS18S20 Signal pin on digital 2
OneWire ds(DS18S20_Pin);  // on digital pin 2
float temperature = 0;
String tempZ = "";
// Potentiometer
int potPin = A2;    // select the input pin for the potentiometer
int ledPin = 4;   // select the pin for the LED
boolean isVal = false;
int potPot = 0;
String cap = "";

void loop() {

  RGBLCDShield.clear();

  // ChronoDot
  // set the cursor to column 0, line 1
  RGBLCDShield.setCursor(0, 1);
  timeChrono();
  // LDR (light dependent resistor)
  timeLDR();
  // Temperature chip i/o
  temperatu();
  // Potentiometer
  getPotentio();

  momentaryButton = RGBLCDShield.readButtons();

  // set the cursor to column 0, line 0
  RGBLCDShield.setCursor(0,0);

  switch ( yy ) {
    case 1:
      // LDR (light dependent resistor)
      isLDR();
      break;
    case 2:
      // Temperature chip i/o
      isTe();
      break;
    case 3:
      // Potentiometer
      isCap();
      break;
    case 4:
      // Yellow
      RGBLCDShield.print("YELLOW - RIGHT");
      break;
    case 5:
      // OFF
      RGBLCDShield.print("OFF");
      break;
    default:
      yy = 0;
      RGBLCDShield.print("Don Luc!!!");
   }

  if ( momentaryButton ) {

    if ( momentaryButton & BUTTON_UP ) {
      isChorno = true;
      yy = 1;
      // LDR (light dependent resistor)
      RGBLCDShield.setBacklight(GREEN);
    }

    if ( momentaryButton & BUTTON_DOWN ) {
      isChorno = true;
      yy = 2;
      // Temperature chip i/o
      RGBLCDShield.setBacklight(RED);
    }

    if ( momentaryButton & BUTTON_LEFT ) {
      isChorno = true;
      yy =3;
      // Potentiometer
      RGBLCDShield.setBacklight(BLUE);
    }

    if ( momentaryButton & BUTTON_RIGHT ) {
      isChorno = true;
      yy = 4;
      //RGBLCDShield.print("YELLOW - RIGHT");
      RGBLCDShield.setBacklight(YELLOW);
    }

    if ( momentaryButton & BUTTON_SELECT ) {
      isChorno = false;
      yy = 5;
      //RGBLCDShield.print("OFF");
      RGBLCDShield.setBacklight(OFF);
    }

  }

  delay(5000);

}

setup.ino

void setup() {

  // set up the LCD's number of columns and rows:
  RGBLCDShield.begin(16, 2);
  RGBLCDShield.setBacklight(VIOLET);

  // ChronoDot
  setupChrono();

  // Pot
  pinMode(ledPin, OUTPUT);

}

ChronoDot.ino

void setupChrono() {

  RTC.begin();

  DateTime now = RTC.now();
  DateTime compiled = DateTime(__DATE__, __TIME__);
  RTC.getControlRegisterData( datastr[0] );

}

void timeChrono() {

    DateTime now = RTC.now();
    DateTime isNow (now.unixtime() + 5572 * 86400L + 26980);

    if ( isChorno == true )
    {
      if ( isChor == false )
        {
          isChor = true;
          RGBLCDShield.print(isNow.year(), DEC);
          RGBLCDShield.print('/');
          RGBLCDShield.print(isNow.month(), DEC);
          RGBLCDShield.print('/');
          RGBLCDShield.print(isNow.day(), DEC);
          RGBLCDShield.print(' ');
          RGBLCDShield.print(' ');
        }
        else if ( isChor == true )
        {
          isChor = false;
          RGBLCDShield.print(isNow.hour(), DEC);
          RGBLCDShield.print(':');
          RGBLCDShield.print(isNow.minute(), DEC);
          RGBLCDShield.print(':');
          RGBLCDShield.print(isNow.second(), DEC);
          RGBLCDShield.print(' ');
          RGBLCDShield.print(' ');
        }
    }

}

getLDR.ino

void timeLDR() {

  // LDR
  LDRReading = analogRead(LDR_Pin);

}

void isLDR() {

  LDR = "LDR: ";
  LDR.concat(LDRReading);
  // LDR (light dependent resistor)
  RGBLCDShield.print( LDR );

}

getPot.ino

void getPotentio() {

    if ( isVal == false )
    {
       isVal = true;
       digitalWrite(ledPin, HIGH);  // turn the ledPin on
    }
    else if ( isVal == true )
    {
       isVal = false;
       digitalWrite(ledPin, LOW);  // turn the ledPin off
    }
    potPot = analogRead(potPin);    // read the value from the sensor

}

void isCap(){

    cap = "Pot: ";
    cap.concat(potPot);
    RGBLCDShield.print( cap );

}

getTemperature.ino

float getTemp() {

  //returns the temperature from one DS18S20 in DEG Celsius
  byte data[12];
  byte addr[8];

  if ( !ds.search(addr)) {
      //no more sensors on chain, reset search
      ds.reset_search();
      return -1001;
  }

  if ( OneWire::crc8( addr, 7) != addr[7]) {
      return -1002;
  }

  if ( addr[0] != 0x10 && addr[0] != 0x28) {
      return -1003;
  }

  ds.reset();
  ds.select(addr);
  ds.write(0x44,1); // start conversion, with parasite power on at the end

  byte present = ds.reset();
  ds.select(addr);
  ds.write(0xBE); // Read Scratchpad


  for (int i = 0; i < 9; i++) { // we need 9 bytes
    data[i] = ds.read();
  }

  ds.reset_search();

  byte MSB = data[1];
  byte LSB = data[0];

  float tempRead = ((MSB << 8) | LSB); //using two's compliment
  float TemperatureSum = tempRead / 16;

  return TemperatureSum;

}

void temperatu(){

  temperature = getTemp();

}

void isTe() {

  tempZ = "Temp: ";
  tempZ.concat(temperature);
  tempZ.concat("C");
  RGBLCDShield.print( tempZ );

}

Don Luc

Posted in #03 - LCD Shield, Arduino, Microcontrollers, Projects | Leave a comment

Project #3 – LCD Shield – Mk4

Published April 10, 2015 | By DonLuc

1 X Mini Photocell

1 X Resistor 10k Ohm

1 X One Wire Digital Temperature Sensor – DS18B20

1 X Resistor 4.7k Ohm

1 X Trimpot 10K with Knob

1 X Resistor 1.65k Ohm

1 X 3MM Low Current Red LED

14 X Jumper Wires Premium 3″ M/M

1 X Project #3 – LED Shield – Mk3

LCDShieldMk4.3.ino

// ***** Don Luc *****
// Software Version Information
// 4.3

// include the library code:
#include <Wire.h>
#include <Adafruit_MCP23017.h>
#include <Adafruit_RGBLCDShield.h>
#include <SPI.h>
#include <RTClib.h>
#include <RTC_DS3231.h>
#include <OneWire.h>

RTC_DS3231 RTC;

#define SQW_FREQ DS3231_SQW_FREQ_1024     //0b00001000   1024Hz

Adafruit_RGBLCDShield RGBLCDShield = Adafruit_RGBLCDShield();

// These #defines make it easy to set the backlight color
#define OFF 0x0
#define RED 0x1
#define YELLOW 0x3
#define GREEN 0x2
#define TEAL 0x6
#define BLUE 0x4
#define VIOLET 0x5
#define WHITE 0x7

// Chorno
boolean isChorno = false;
char datastr[100];
// LDR (light dependent resistor)
int LDR_Pin = A0;
String LDR = "";
// Temperature chip i/o
int DS18S20_Pin = 2; //DS18S20 Signal pin on digital 2
OneWire ds(DS18S20_Pin);  // on digital pin 2
String tempZ = "";
// Potentiometer
int potPin = A2;    // select the input pin for the potentiometer
int ledPin = 4;   // select the pin for the LED
boolean isVal = false;
int potPot = 0;
String cap = "";

void loop() {

  // timeChrono();
  timeChrono();

  uint8_t momentaryButton = RGBLCDShield.readButtons();

  if ( momentaryButton ) {

    RGBLCDShield.clear();

    RGBLCDShield.setCursor(0,0);

    if ( momentaryButton & BUTTON_UP ) {
      timeLDR();
      RGBLCDShield.print( LDR );
      RGBLCDShield.setBacklight(GREEN);
    }

    if ( momentaryButton & BUTTON_DOWN ) {
      temperatu();
      RGBLCDShield.print( tempZ );
      RGBLCDShield.setBacklight(RED);
    }

    if ( momentaryButton & BUTTON_LEFT ) {
      getPotentio();
      RGBLCDShield.print( cap );
      RGBLCDShield.setBacklight(BLUE);
    }

    if ( momentaryButton & BUTTON_RIGHT ) {
      RGBLCDShield.print("YELLOW - RIGHT");
      RGBLCDShield.setBacklight(YELLOW);
    }

    if ( momentaryButton & BUTTON_SELECT ) {
      RGBLCDShield.print("OFF");
      RGBLCDShield.setBacklight(OFF);
    }

  }

  delay(3000);

}

setup.ino

void setup() {

  // set up the LCD's number of columns and rows:
  RGBLCDShield.begin(16, 2);
  RGBLCDShield.print("Don Luc!!!");
  RGBLCDShield.setBacklight(VIOLET);

  // ChronoDot
  setupChrono();

  // Pot
  pinMode(ledPin, OUTPUT);

}

ChronoDot.ino

void setupChrono() {

  RTC.begin();

  DateTime now = RTC.now();
  DateTime compiled = DateTime(__DATE__, __TIME__);
  RTC.getControlRegisterData( datastr[0] );

}

void timeChrono() {

    DateTime now = RTC.now();
    DateTime isNow (now.unixtime() + 5572 * 86400L + 26980);

    // set the cursor to column 0, line 1
    RGBLCDShield.setCursor(0, 1);

    if ( isChorno == false )
    {
      isChorno = true;
      RGBLCDShield.print(isNow.year(), DEC);
      RGBLCDShield.print('/');
      RGBLCDShield.print(isNow.month(), DEC);
      RGBLCDShield.print('/');
      RGBLCDShield.print(isNow.day(), DEC);
      RGBLCDShield.print(' ');
      RGBLCDShield.print(' ');
    }
    else if ( isChorno == true )
    {
      isChorno = false;
      RGBLCDShield.print(isNow.hour(), DEC);
      RGBLCDShield.print(':');
      RGBLCDShield.print(isNow.minute(), DEC);
      RGBLCDShield.print(':');
      RGBLCDShield.print(isNow.second(), DEC);
      RGBLCDShield.print(' ');
      RGBLCDShield.print(' ');
    }

}

getLDR.ino

void timeLDR() {

  // LDR
  int LDRReading = analogRead(LDR_Pin);
  LDR = "LDR: ";
  LDR.concat(LDRReading);

}

getPot.ino

void getPotentio() {

    if ( isVal == false )
    {
       isVal = true;
       digitalWrite(ledPin, HIGH);  // turn the ledPin on
    }
    else if ( isVal == true )
    {
       isVal = false;
       digitalWrite(ledPin, LOW);  // turn the ledPin off
    }
    potPot = analogRead(potPin);    // read the value from the sensor
    cap = "Pot: ";
    cap.concat(potPot);

}

getTemperature.ino

float getTemp() {

  //returns the temperature from one DS18S20 in DEG Celsius
  byte data[12];
  byte addr[8];

  if ( !ds.search(addr)) {
      //no more sensors on chain, reset search
      ds.reset_search();
      return -1001;
  }

  if ( OneWire::crc8( addr, 7) != addr[7]) {
      return -1002;
  }

  if ( addr[0] != 0x10 && addr[0] != 0x28) {
      return -1003;
  }

  ds.reset();
  ds.select(addr);
  ds.write(0x44,1); // start conversion, with parasite power on at the end

  byte present = ds.reset();
  ds.select(addr);
  ds.write(0xBE); // Read Scratchpad


  for (int i = 0; i < 9; i++) { // we need 9 bytes
    data[i] = ds.read();
  }

  ds.reset_search();

  byte MSB = data[1];
  byte LSB = data[0];

  float tempRead = ((MSB << 8) | LSB); //using two's compliment
  float TemperatureSum = tempRead / 16;

  return TemperatureSum;

}

void temperatu(){

  float temperature = getTemp();
  tempZ = "Temp: ";
  tempZ.concat(temperature);
  tempZ.concat("C");

}

Don Luc

Posted in #03 - LCD Shield, Arduino, Microcontrollers, Projects | Leave a comment

Project #3 – LCD Shield – Mk3

Published April 6, 2015 | By DonLuc

2 X Jumper Wires Premium 3″ M/M

1 X Project #3 – LED Shield – Mk2

LCDShieldMk3.0.ino

// ***** Don Luc *****
// Software Version Information
// 3.0

// include the library code:
#include <Wire.h>
#include <Adafruit_MCP23017.h>
#include <Adafruit_RGBLCDShield.h>
#include <SPI.h>
#include <RTClib.h>
#include <RTC_DS3231.h>

RTC_DS3231 RTC;

#define SQW_FREQ DS3231_SQW_FREQ_1024     //0b00001000   1024Hz

Adafruit_RGBLCDShield RGBLCDShield = Adafruit_RGBLCDShield();

// These #defines make it easy to set the backlight color
#define OFF 0x0
#define RED 0x1
#define YELLOW 0x3
#define GREEN 0x2
#define TEAL 0x6
#define BLUE 0x4
#define VIOLET 0x5
#define WHITE 0x7

boolean isChorno = false;

char datastr[100];

void loop() {

  // timeChrono();
  timeChrono();

  uint8_t momentaryButton = RGBLCDShield.readButtons();

  if ( momentaryButton ) {

    RGBLCDShield.clear();

    RGBLCDShield.setCursor(0,0);

    if ( momentaryButton & BUTTON_UP ) {
      RGBLCDShield.print("GREEN - UP");
      RGBLCDShield.setBacklight(GREEN);
    }

    if ( momentaryButton & BUTTON_DOWN ) {
      RGBLCDShield.print("RED - DOWN");
      RGBLCDShield.setBacklight(RED);
    }

    if ( momentaryButton & BUTTON_LEFT ) {
      RGBLCDShield.print("BLUE - LEFT");
      RGBLCDShield.setBacklight(BLUE);
    }

    if ( momentaryButton & BUTTON_RIGHT ) {
      RGBLCDShield.print("YELLOW - RIGHT");
      RGBLCDShield.setBacklight(YELLOW);
    }

    if ( momentaryButton & BUTTON_SELECT ) {
      RGBLCDShield.print("OFF");
      RGBLCDShield.setBacklight(OFF);
    }

  }

  delay(3000);

}

setup.ino

void setup() {

  // set up the LCD's number of columns and rows:
  RGBLCDShield.begin(16, 2);
  RGBLCDShield.print("Don Luc!!!");
  RGBLCDShield.setBacklight(VIOLET);

  // ChronoDot
  setupChrono();

}

ChronoDot.ino

void setupChrono() {

  RTC.begin();

  DateTime now = RTC.now();
  DateTime compiled = DateTime(__DATE__, __TIME__);
  RTC.getControlRegisterData( datastr[0] );

}

void timeChrono() {

    DateTime now = RTC.now();
    DateTime isNow (now.unixtime() + 5572 * 86400L + 26980);

    // set the cursor to column 0, line 1
    RGBLCDShield.setCursor(0, 1);

    if ( isChorno == false )
    {
      isChorno = true;
      RGBLCDShield.print(isNow.year(), DEC);
      RGBLCDShield.print('/');
      RGBLCDShield.print(isNow.month(), DEC);
      RGBLCDShield.print('/');
      RGBLCDShield.print(isNow.day(), DEC);
      RGBLCDShield.print(' ');
      RGBLCDShield.print(' ');
    }
    else if ( isChorno == true )
    {
      isChorno = false;
      RGBLCDShield.print(isNow.hour(), DEC);
      RGBLCDShield.print(':');
      RGBLCDShield.print(isNow.minute(), DEC);
      RGBLCDShield.print(':');
      RGBLCDShield.print(isNow.second(), DEC);
      RGBLCDShield.print(' ');
      RGBLCDShield.print(' ');
    }

}

Don Luc

Posted in #03 - LCD Shield, Arduino, Microcontrollers, Projects | Leave a comment

Project #3 – LCD Shield – Mk2

Published April 4, 2015 | By DonLuc

1 X ChronoDot

1 X ProtoScrewShield

1 X Breadboard

4 X Jumper Wires Premium 3″ M/M

1 X CR1632

1 X Project #3 – LED Shield – Mk1

LCDShieldMk2.2.ino

// ***** Don Luc *****
// Software Version Information
// 2.2

// include the library code:
#include <Wire.h>
#include <Adafruit_MCP23017.h>
#include <Adafruit_RGBLCDShield.h>

Adafruit_RGBLCDShield RGBLCDShield = Adafruit_RGBLCDShield();

// These #defines make it easy to set the backlight color
#define OFF 0x0
#define RED 0x1
#define YELLOW 0x3
#define GREEN 0x2
#define TEAL 0x6
#define BLUE 0x4
#define VIOLET 0x5
#define WHITE 0x7

uint8_t i = 0;

void loop() {

  timeChrono();

  uint8_t momentaryButton = RGBLCDShield.readButtons();

  if ( momentaryButton ) {

    RGBLCDShield.clear();
    RGBLCDShield.setCursor(0,0);

    if ( momentaryButton & BUTTON_UP ) {
      RGBLCDShield.print("GREEN - UP ");
      RGBLCDShield.setBacklight(GREEN);
    }

    if ( momentaryButton & BUTTON_DOWN ) {
      RGBLCDShield.print("RED - DOWN ");
      RGBLCDShield.setBacklight(RED);
    }

    if ( momentaryButton & BUTTON_LEFT ) {
      RGBLCDShield.print("BLUE - LEFT ");
      RGBLCDShield.setBacklight(BLUE);
    }

    if ( momentaryButton & BUTTON_RIGHT ) {
      RGBLCDShield.print("YELLOW - RIGHT ");
      RGBLCDShield.setBacklight(YELLOW);
    }

    if ( momentaryButton & BUTTON_SELECT ) {
      RGBLCDShield.print("OFF ");
      RGBLCDShield.setBacklight(OFF);
    }

  }

  delay(1000);

}

setup.ino

void setup() {

  // set up the LCD's number of columns and rows:
  RGBLCDShield.begin(16, 2);
  RGBLCDShield.print("Don Luc!!!");
  RGBLCDShield.setBacklight(VIOLET);

  // ChronoDot
  setupChrono();

}

ChronoDot.ino

void setupChrono() {

  // clear /EOSC bit
  // Sometimes necessary to ensure that the clock
  // keeps running on just battery power.
  Wire.beginTransmission(0x68); // address DS3231
  Wire.write(0x0E); // select register
  Wire.write(0b00011100); // write register bitmap, bit 7 is /EOSC
  Wire.endTransmission();

}

void timeChrono() {

  // set the cursor to column 0, line 1
  RGBLCDShield.setCursor(0, 1);

   // send request to receive data starting at register 0
  Wire.beginTransmission(0x68); // 0x68 is DS3231 device address
  Wire.write((byte)0); // start at register 0
  Wire.endTransmission();
  Wire.requestFrom(0x68, 3); // request three bytes (seconds, minutes, hours)

  while(Wire.available())
  {

    int seconds = Wire.read(); // get seconds
    int minutes = Wire.read(); // get minutes
    int hours = Wire.read();   // get hours

    seconds = (((seconds & 0b11110000)>>4)*10 + (seconds & 0b00001111)); // convert BCD to decimal
    minutes = (((minutes & 0b11110000)>>4)*10 + (minutes & 0b00001111)); // convert BCD to decimal
    hours = (((hours & 0b00100000)>>5)*20 + ((hours & 0b00010000)>>4)*10 + (hours & 0b00001111)); // convert BCD to decimal (assume 24 hour mode)

    // print the number of seconds since reset:
    RGBLCDShield.print(hours);
    RGBLCDShield.print(":");
    RGBLCDShield.print(minutes);
    RGBLCDShield.print(":");
    RGBLCDShield.print(seconds);

  }

}

Don Luc

Posted in #03 - LCD Shield, Arduino, Microcontrollers, Projects | Leave a comment

Project #3 – LCD Shield – Mk1

Published March 31, 2015 | By DonLuc

1 X Arduino UNO Rev3

1 X Adafruit I2C Controlled + Keypad Shield Kit for 16×2 LCD

1 X RGB backlight positive LCD 16×2 + extras – black on RGB

LCDShieldMk1.3.ino

// ***** Don Luc *****
// Software Version Information
// 1.3

// include the library code:
#include <Wire.h>
#include <Adafruit_MCP23017.h>
#include <Adafruit_RGBLCDShield.h>

Adafruit_RGBLCDShield RGBLCDShield = Adafruit_RGBLCDShield();

// These #defines make it easy to set the backlight color
#define OFF 0x0
#define RED 0x1
#define YELLOW 0x3
#define GREEN 0x2
#define TEAL 0x6
#define BLUE 0x4
#define VIOLET 0x5
#define WHITE 0x7

uint8_t i = 0;

void loop() {

  // set the cursor to column 0, line 1
  RGBLCDShield.setCursor(0, 1);
  // print the number of seconds since reset:
  RGBLCDShield.print(millis() / 1000);

  uint8_t momentaryButton = RGBLCDShield.readButtons();

  if ( momentaryButton ) {

    RGBLCDShield.clear();
    RGBLCDShield.setCursor(0,0);

    if ( momentaryButton & BUTTON_UP ) {
      RGBLCDShield.print("GREEN - UP ");
      RGBLCDShield.setBacklight(GREEN);
    }

    if ( momentaryButton & BUTTON_DOWN ) {
      RGBLCDShield.print("RED - DOWN ");
      RGBLCDShield.setBacklight(RED);
    }

    if ( momentaryButton & BUTTON_LEFT ) {
      RGBLCDShield.print("BLUE - LEFT ");
      RGBLCDShield.setBacklight(BLUE);
    }

    if ( momentaryButton & BUTTON_RIGHT ) {
      RGBLCDShield.print("YELLOW - RIGHT ");
      RGBLCDShield.setBacklight(YELLOW);
    }

    if ( momentaryButton & BUTTON_SELECT ) {
      RGBLCDShield.print("OFF ");
      RGBLCDShield.setBacklight(OFF);
    }

  }

}

setup.ino

void setup() {

  // set up the LCD's number of columns and rows:
  RGBLCDShield.begin(16, 2);

  // We track how long it takes since
  int time = millis();
  RGBLCDShield.print("Don Luc!!!");
  time = millis() - time;
  RGBLCDShield.setBacklight(VIOLET);
}

Don Luc

Posted in #03 - LCD Shield, Arduino, Microcontrollers, Projects | Leave a comment

Project #2 – Lens – LED – Mk6

Published February 26, 2015 | By DonLuc

1 X Arduino Pro Mini 328 – 5V/16MHz

5 X Break Away Headers – Straight

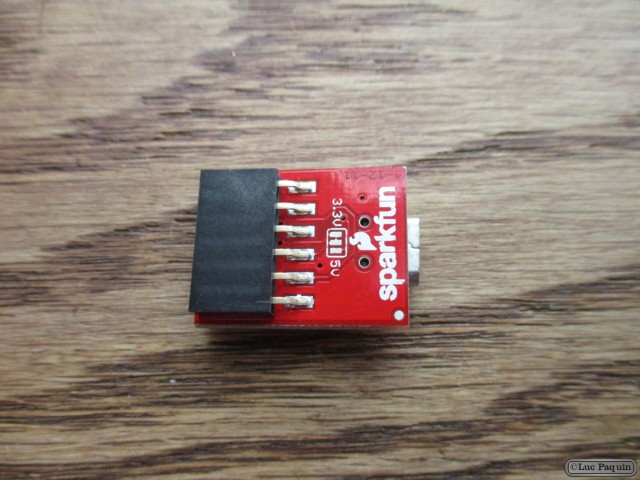

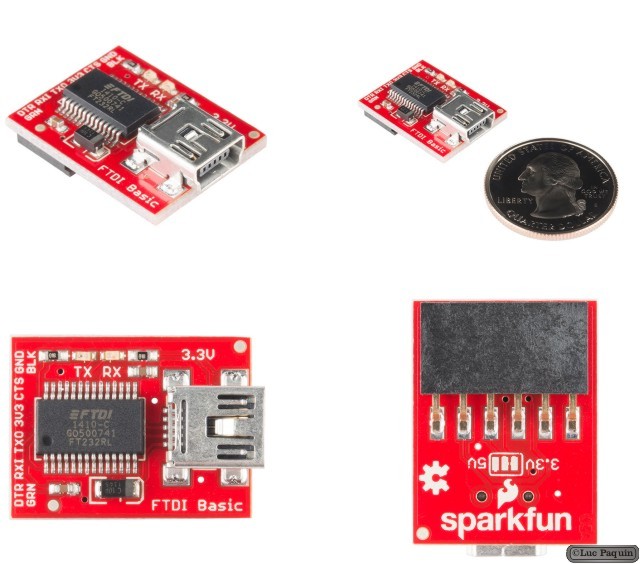

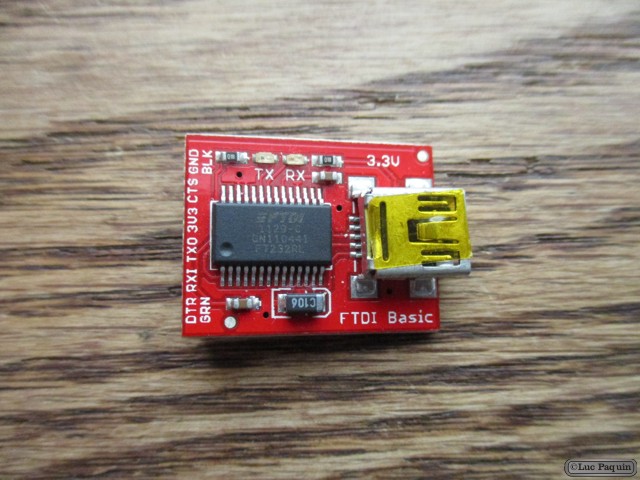

1 X FTDI Basic Breakout – 5V

1 X USB LiPoly Charger – Single Cell

1 X Polymer Lithium Ion Battery – 400mAh

5 X Standoff – Nylon (3/8″, #4-40)

12 X Pan Head, Slotted Drive, #4-40 Thread Size, 1/4″ Length

2 X Nut – Nylon Locknut – #4-40

1 X SPDT Mini Power Switch

3 X Panel Mount 10K potentiometer (Breadboard Friendly) – 10K Linear

1 X Potentiometer Knob – Soft Touch T18 – Red

1 X Potentiometer Knob – Soft Touch T18 – Blue

1 X Potentiometer Knob – Soft Touch T18 – White

22 X Hook-Up Wire – Assortment (Solid Core, 22 AWG)

1 X Prototyping Board

1 X Project #2 – Lens – LED – Mk1

Don Luc

Posted in #02 - Glasses LED, Arduino, Microcontrollers, Projects | Leave a comment

Project #2 – Lens – LED – Mk5

Published February 6, 2015 | By DonLuc

1 X Foam Sheet – Peel & Stick – Black

1 X Foam Sheet – Peel & Stick – Red

1 X Foam Sheet – Peel & Stick – White

1 X Scotch Magic Tape

1 X Duck Tape – White

1 X Project #2 – Lens – LED – Mk4

Don Luc

Posted in #02 - Glasses LED, Arduino, Microcontrollers, Projects | Leave a comment

Project #2 – Lens – LED – Mk4

Published January 18, 2015 | By DonLuc

1 X Panel Mount 10K potentiometer (Breadboard Friendly) – 10K Linear

3 X Jumper Wires Premium 6″ M/M

1 X Project #2 – Lens – LED – Mk3

LensLEDMk4.3.ino

// ***** Don Luc *****
// Software Version Information
// 4.1 - 4.2 - 4.3
// sensorNumber

#include
// Which pin on the Arduino is connected to the NeoPixels?
#define PIN 6
// How many NeoPixels are attached to the Arduino?
#define NUMPIXELS 2
Adafruit_NeoPixel pixels = Adafruit_NeoPixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);
// Panel Mount 1K potentiometer Brightneed
const int sensorPin = A0;
// Panel Mount 1K potentiometer
const int sensorDelay = A1;
// Panel Mount 1K potentiometer
const int sensorNumber = A2;
// variables:
int sensorValue = 0;         // the sensor value
int sensorMin = 1023;        // minimum sensor value
int sensorMax = 0;           // maximum sensor value
int red = 0;
int green = 0;
int blue = 0;
int x = 0;
long delayVal = 0;
long xp = 0;
int y = 0;
int z = 0;

void loop() {

  z = analogRead(sensorNumber);
  y = (z / 127);

  // range value:
  switch (y) {
    case  0:
      // Blue
      red = 0;
      green = 102;
      blue = 204;
      neopix();
      break;
    case 1:
      // Yellow
      red = 255;
      green = 255;
      blue = 0;
      neopix();
      break;
    case 2:
      // Pink
      red = 255;
      green = 153;
      blue = 203;
      neopix();
      break;
    case 3:
      // White
      red = 255;
      green = 255;
      blue = 255;
      neopix();
      break;
    case 4:
      // Green
      red = 0;
      green = 255;
      blue = 0;
      neopix();
      break;
    case 5:
      // Orange
      red = 255;
      green = 102;
      blue = 0;
      neopix();
      break;
    case 6:
      // Violet
      red = 204;
      green = 102;
      blue = 204;
      neopix();
      break;
    case 7:
        xp = analogRead(sensorDelay);
        delayVal = (1000 * xp);
        // range value:
        switch (x) {
          case 0:
            // Blue
            red = 0;
            green = 102;
            blue = 204;
            neopix();
            delay(delayVal); // Delay for a period of time (in milliseconds).
            x = 1;
            break;
          case 1:
            // Yellow
            red = 255;
            green = 255;
            blue = 0;
            neopix();
            delay(delayVal); // Delay for a period of time (in milliseconds).
            x = 2;
            break;
          case 2:
            // Pink
            red = 255;
            green = 153;
            blue = 203;
            neopix();
            delay(delayVal); // Delay for a period of time (in milliseconds).
            x = 3;
            break;
          case 3:
            // White
            red = 255;
            green = 255;
            blue = 255;
            neopix();
            delay(delayVal); // Delay for a period of time (in milliseconds).
            x = 4;
            break;
          case 4:
            // Green
            red = 0;
            green = 255;
            blue = 0;
            neopix();
            delay(delayVal); // Delay for a period of time (in milliseconds).
            x = 5;
            break;
          case 5:
            // Orange
            red = 255;
            green = 102;
            blue = 0;
            neopix();
            delay(delayVal); // Delay for a period of time (in milliseconds).
            x = 6;
            break;
          case 6:
            // Violet
            red = 204;
            green = 102;
            blue = 204;
            neopix();
            delay(delayVal); // Delay for a period of time (in milliseconds).
            x = 0;
            break;
          }
          break;
  }

}

neopin.ino

void neopix() {

  for(int i=0; i<NUMPIXELS; i++){

     // read the sensor:
    sensorValue = analogRead(sensorPin);

    // apply the calibration to the sensor reading
    sensorValue = map(sensorValue, sensorMin, sensorMax, 0, 255);

    // in case the sensor value is outside the range seen during calibration
    sensorValue = constrain(sensorValue, 0, 255);

    // pixels.Color takes RGB values, from 0,0,0 up to 255,255,255
    pixels.setBrightness( sensorValue );
    pixels.setPixelColor(i, pixels.Color(red,green,blue));
    pixels.show(); // This sends the updated pixel color to the hardware.

    delay(50); // Delay for a period of time (in milliseconds).

  }

}

setup.ino

void setup() {
  pixels.begin(); // This initializes the NeoPixel library.
}

Don Luc

Posted in #02 - Glasses LED, Arduino, Microcontrollers, Projects | Leave a comment

Don Luc Electronics

The Alpha Geek – Geeking Out

Machine

Ontrak ADU208 – Mk1

Project #3 – LCD Shield – Mk5

Project #3 – LCD Shield – Mk4

Project #3 – LCD Shield – Mk3

Project #3 – LCD Shield – Mk2

Project #3 – LCD Shield – Mk1

Project #2 – Lens – LED – Mk6

Project #2 – Lens – LED – Mk5

Project #2 – Lens – LED – Mk4

Categories

Archives
